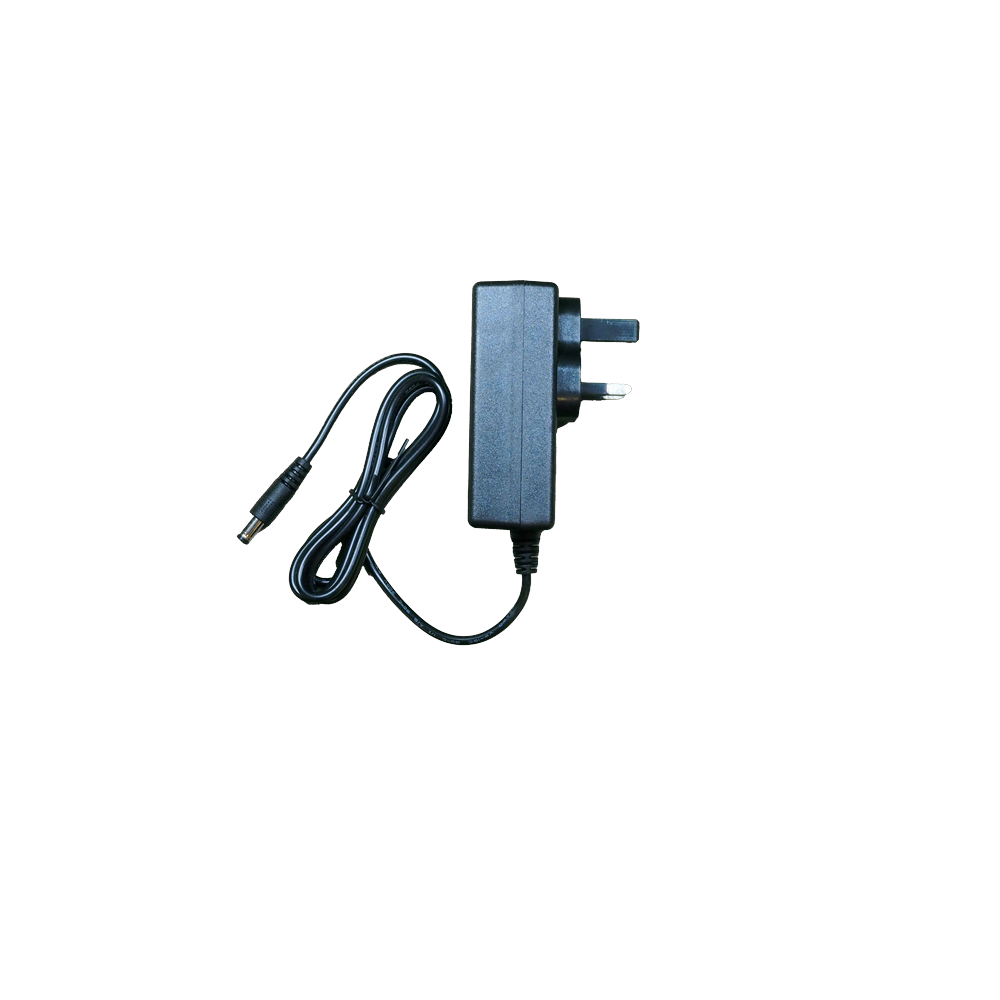

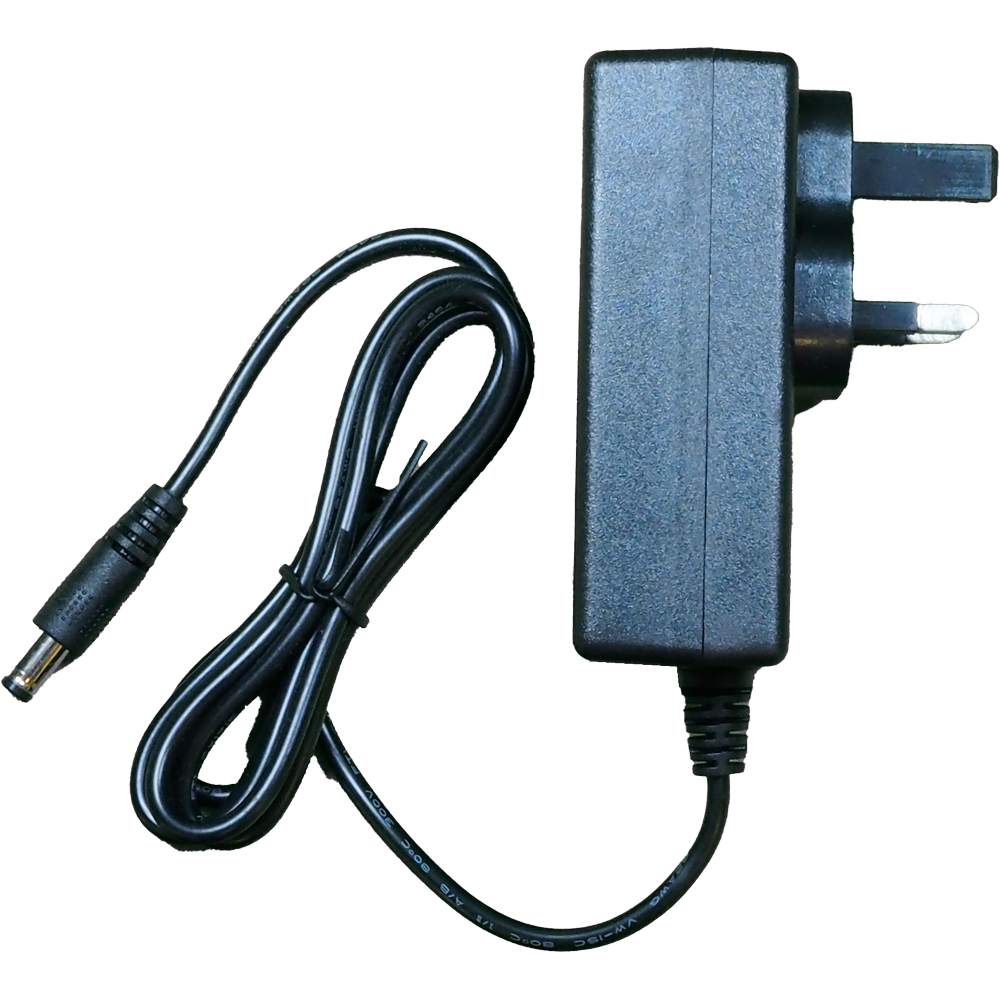

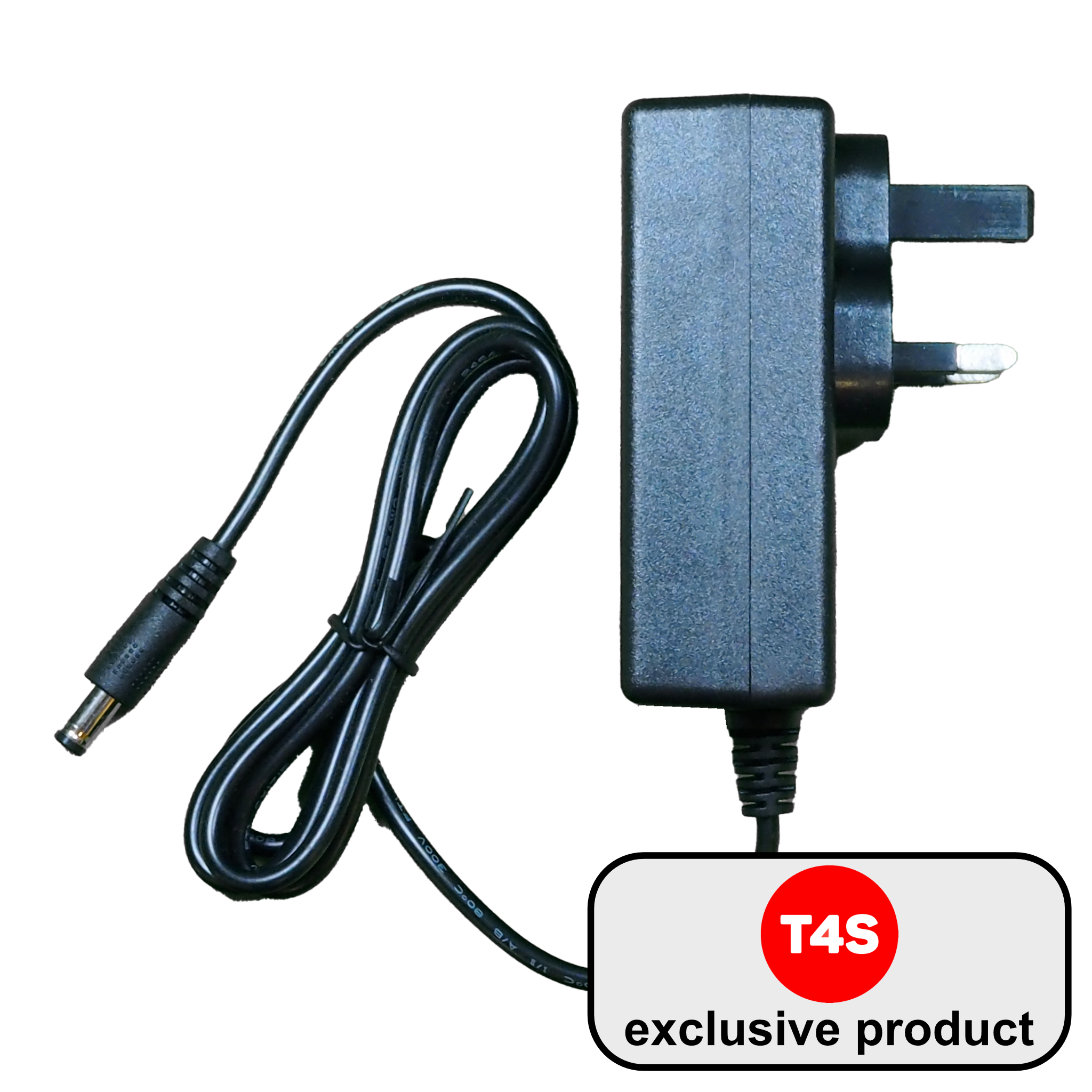

4G Smart Hub Power Supply Replacement

This power supply is rated to 12W maximum, providing a regulated 12Vdc output at up to 1A with no minimum load. The unit meets latest CoC Tier 1 / Level VI efficiency standards and will be uprated to CoC Tier 2 requirements before the requirement is mandatory. This power supply carries full safety approvals with integral short circuit and over current protection.

• No minimum load
• Built in short circuit protection
• High reliability 100% burned in and tested
• Meets ErP / EuP / CEC Energy Efficiency legislation
• Rated power is 12W
• UK fixed input connector
• 2.1mm x 5.5mm x 12mm straight output connector and +ve centre polarity
• Safety approved and energy efficient
• Level V ErP/EuP efficiency compliant
• 1.8 meter DC cord

Product Information

No. of Outputs: 1 Output

Output Power Max: 12W

Output Voltage – Output 1: 12VDC

Output Current – Output 1: 1A

Output Connector: 2.1mm x 5.5mm x 12mm

Input Voltage AC Min: 90VAC

Power Supply Output Type: Fixed

Input Voltage VAC: 90V AC to 264V AC

Input Voltage AC Max: 264VAC

Plug Type: UK
