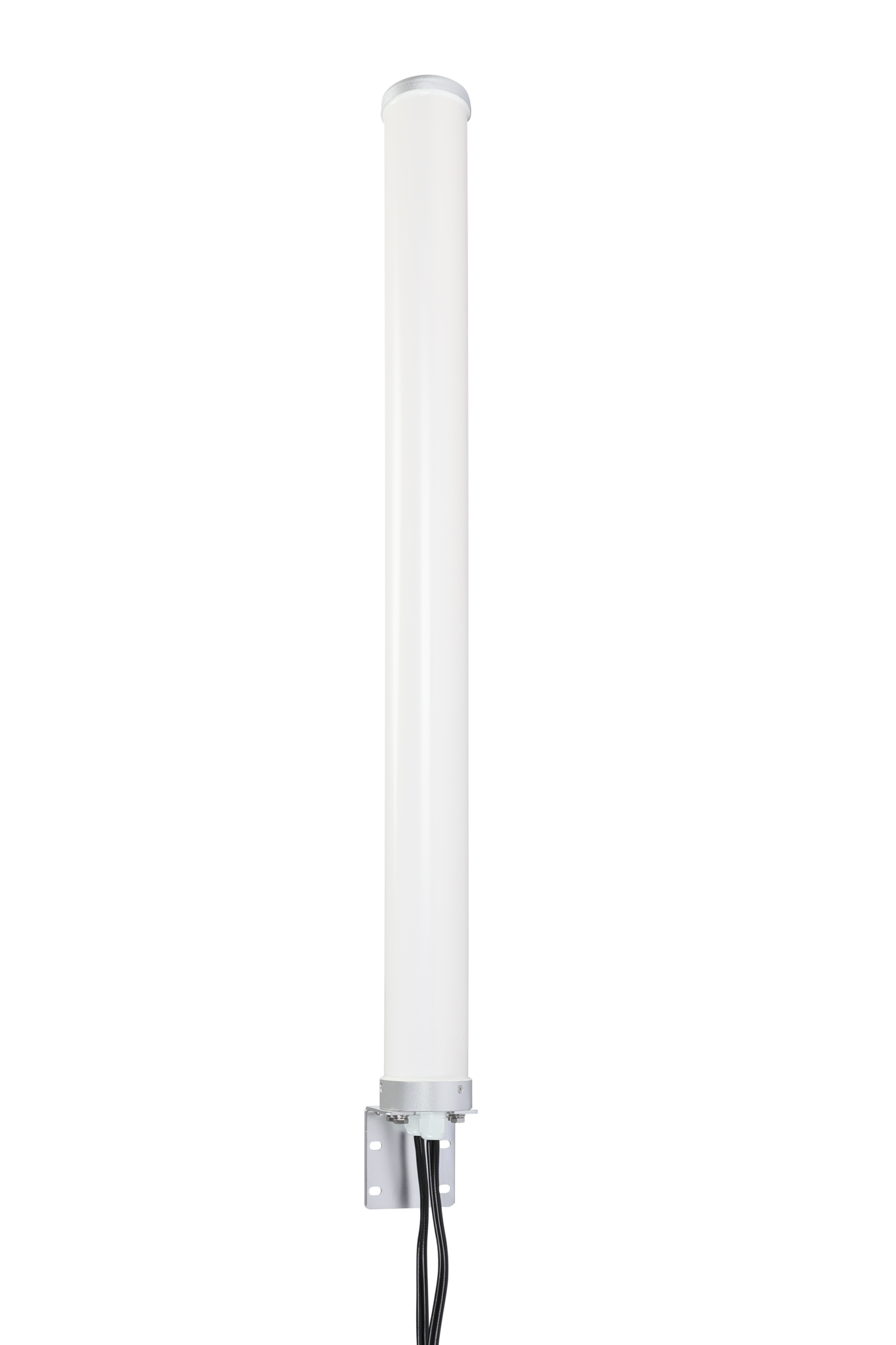

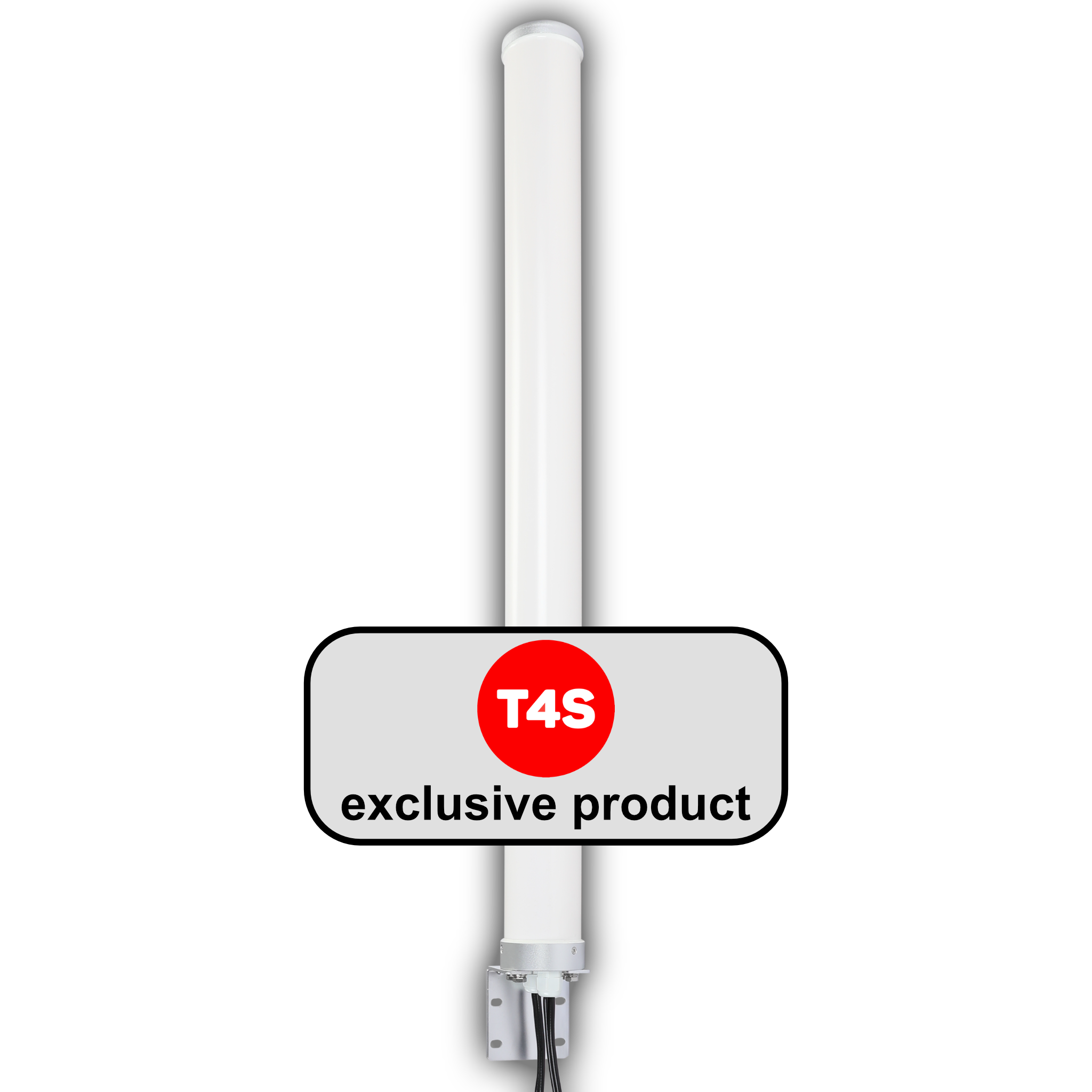

5G Omnidirectional Antenna
5G High gain Omni Directional Antenna for the 5G Ultra Hub
£210.00£252.00 Excl. VATIncl. VAT
Our WiFi units will work in most places just out of the box, but we cater to everyone at T4S. Sometimes the signal needs an extra bit of help.
That's when we recommend using the 5G Omnidirectional Antenna.

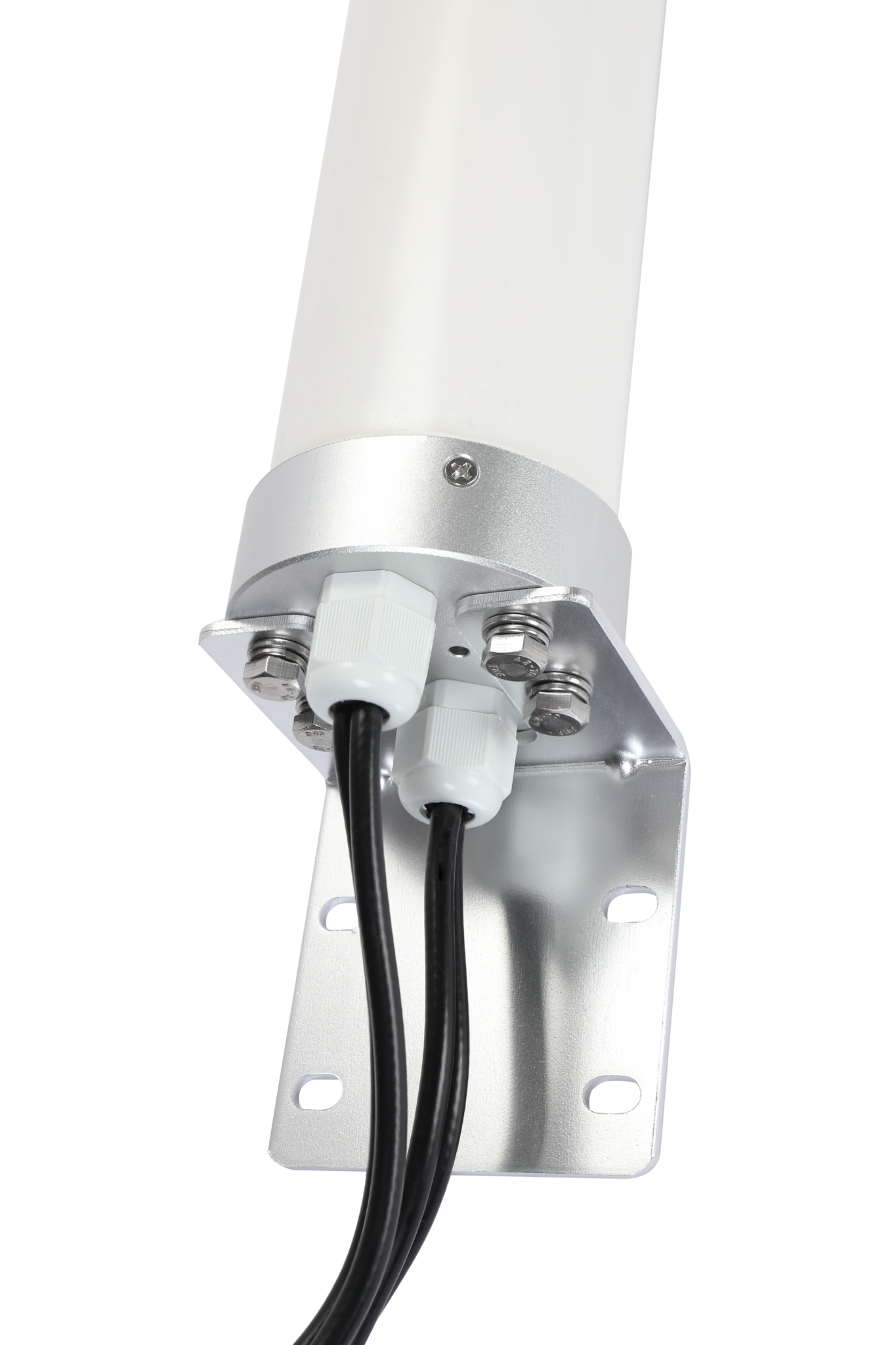

The antenna enables easy connectivity in any area. It can be mounted on a wall, pole or to glass using the included brackets or strong suction cups.
Previous customers have used it at the bottom of a valley, a portacabin in the middle of a field and in busy built up areas.
The antenna is hard UV resistant plastic and will survive in extreme conditions from +65°C all the way down to -40°C.
What's in the Box?
One 5G omni directional antenna
Techie Stuff
Mobile frequencies: 698-960 / 1710-2700
Impedance: 50
LTE VSWR: < 1.5
Gain: 2.5 / 5
Horizontal beam width: 360mm
Vertical beam width: 60mm
Connector: SMA
Cables: 5m (extendable up to 20m in total)
Radiation pattern: omni
Polarization: vertical
Extension cables: optional
Operating temp: -40°C / +65°C
Radome material: UV-PVC
Colour: White
Ingress Protection: IP65
Weight: 1000g
Pole mount: Yes
Wall mount: Yes
Glass mount: Yes
Height: 760 mm
Radius: 63 mm
This item is to be used with our T4S 5G Ultra WiFi Hub
